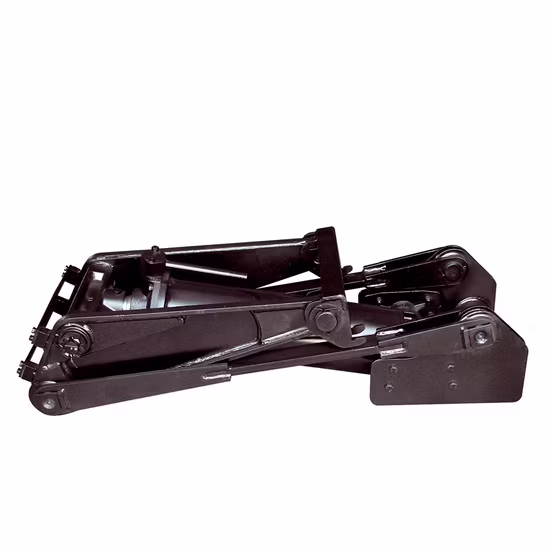

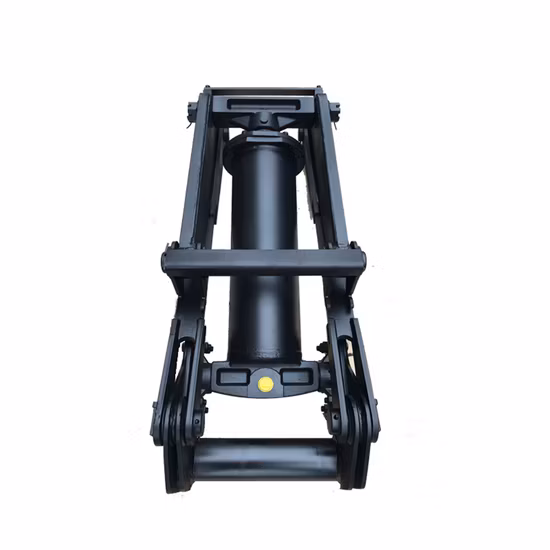

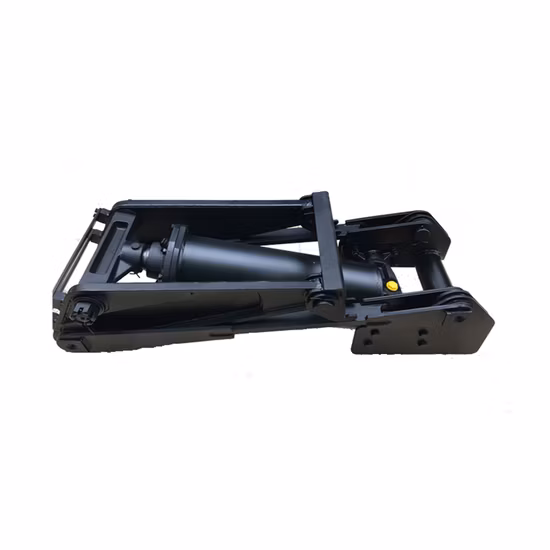

Hydraulic Hoist Cylinder Krm160c for Japanese Dump Truck

Basic Info.

Model NO.	KRM160C
Transport Package	Pallet
Specification	customizable
Trademark	Fenghu
Origin	China

Product Description

Hoist Cylinder Technical Specificaion:

Hoist Cylinder KRM143B
Working Pressure	Inner Diameter	Stroke	Min.Close Distance	Piston Rod Diameter	Max. Pressure
6.9MPa	160mm	740mm	1142mm	70mm	15.7MPa

Hoist Machanism Dimensions and Weight

Length	Width	Height	Min.Closed Length	Weight
1715mm	517mm	338mm	483mm	260kg

Hoist Mounting and Maximum Lifting Capacity

Recommen ded Truck G.W.	Body Length	Rear Overhang Length	Distance between Load Center and Hinge	Distance between trunnion and Hinge	Rated Lifting Capacity	Designed Max.Lifting Capacity
11000-17000kg	4500mm	750mm	1500mm	2050mm	6000-8000kg	16000kg
